Cutting Blade ZS20

Contact

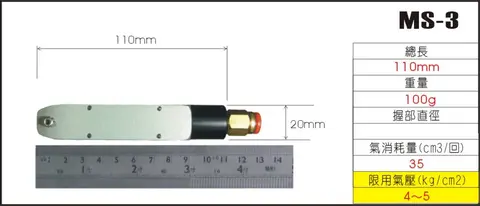

Overall length : 110 mm
Weight : 100 g
Grip diameter : 20 mm
Air consumption : 35 cm3/stroke
Blade pressure : 265 N
Operating pressure : 4-5 kg/ cm2

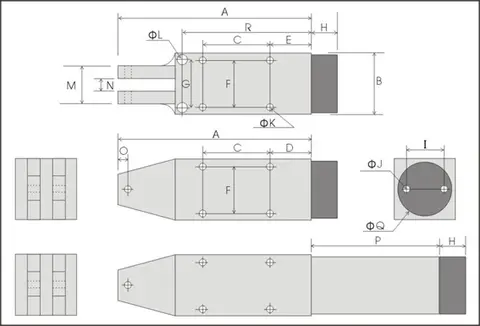

Dimensions of the MS-3 pneumatic cutter body



Compatible blades for MS-3
|
材质 |
替换刀刃 |
剪切能力 |
||
|
金 属 线 |
S20 |
S20.1 |
S20S |
铜线:0.8mm |
|
铁线:0.5mm |
||||
|
材质 |
替换刀刃 |
剪切能力 |
|
|
塑 胶 |
F10 |
F10S |
塑胶:1.0mm |
|
材质 |
替换刀刃 |
剪切能力 |
|
钢 线 |
ZS20 |
钢线:0.2mm |
