Air blowing screw feeder for automation system | Air blowing screw feeder for automation system
The VECTOR blow-type automatic screw feeder is designed for integration with automation systems.

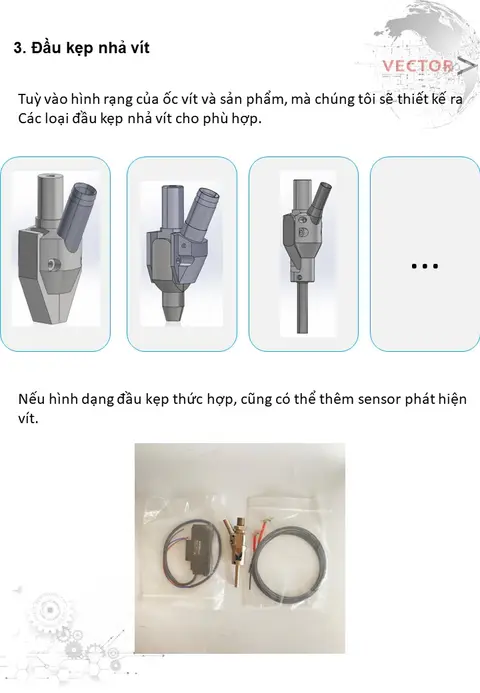

The VECTOR blow-type automatic screw feeder includes: a screw blowing system, a screw chuck/nozzle, a screwdriver fixture, etc. Customers can purchase the complete set or individual components according to their needs.
The VECTOR automatic screw feeding and driving system is convenient to use, provides continuous screw feeding, features simple and user-friendly operation, saves robot travel distance, and shortens cycle time—thereby improving machine productivity and efficiency.
1. Technical Specifications

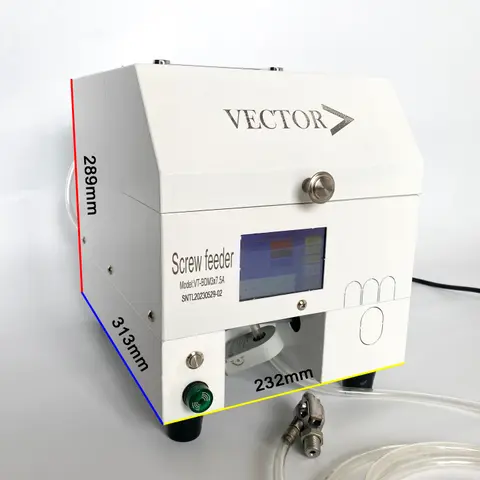

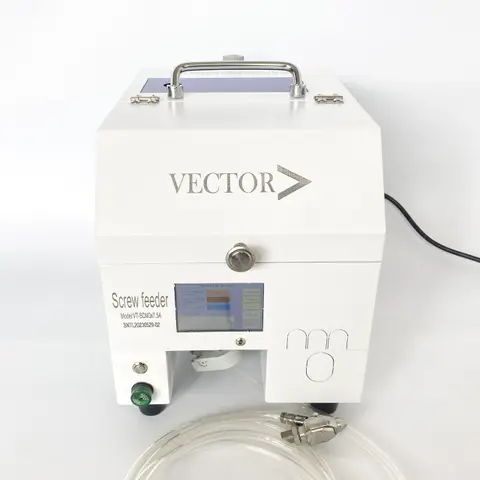

Small machine

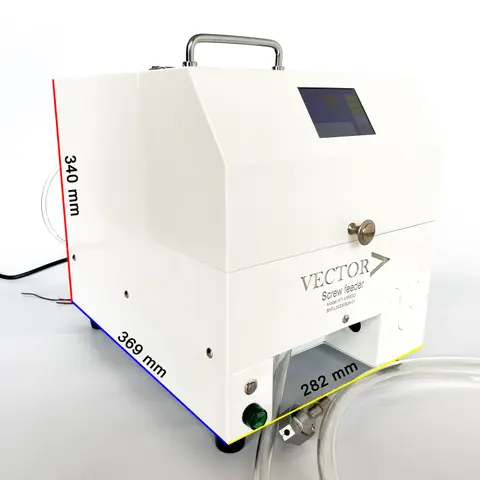

Large machine
| No. | Parameter | Parameter / Specification |
| 1 | Voltage | 220V AC±10%, 50/60Hz |
| 2 | Fuse | 5A/250V AC |
| 3 | Output power | 100W |
| 4 |
Working air pressure |
5-6 kg/cm2 |
| 5 |
Screw feeding distance |
1-4 m |
| 6 | Screw fastening | 1 operator handheld operation |
| 7 | Screw feeding system | Single screw feeding |
| 8 | Screw fastening efficiency | 0.5~1s / 1 screw |
| 9 |
Screw hopper capacity |
3000 PCS ( M3x10 ) & 5000 PCS ( M3x10) |
| 10 | Push-pull cylinder stroke | ( According to customer requirements & screw type ) |
| 11 | Screw feeding method | Air-blow screw feeding |
| 12 | Applicable screw range | ( Custom-designed according to customer's screw ) |
| 13 | External dimensions | ( Depending on customer requirements ) |
| 14 | Weight | ( Depending on customer requirements ) |

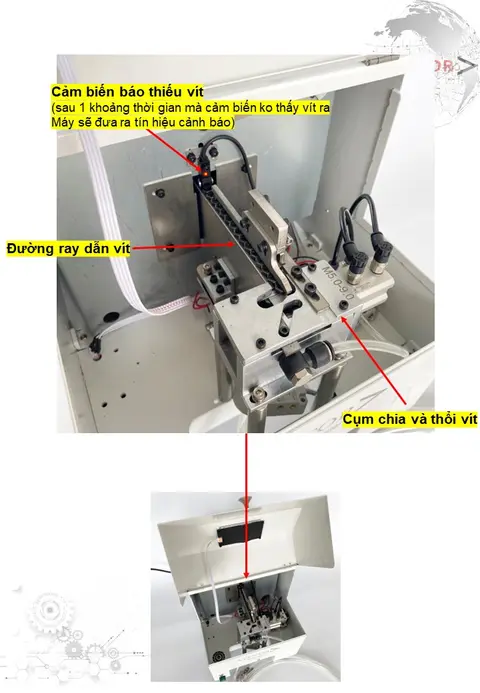

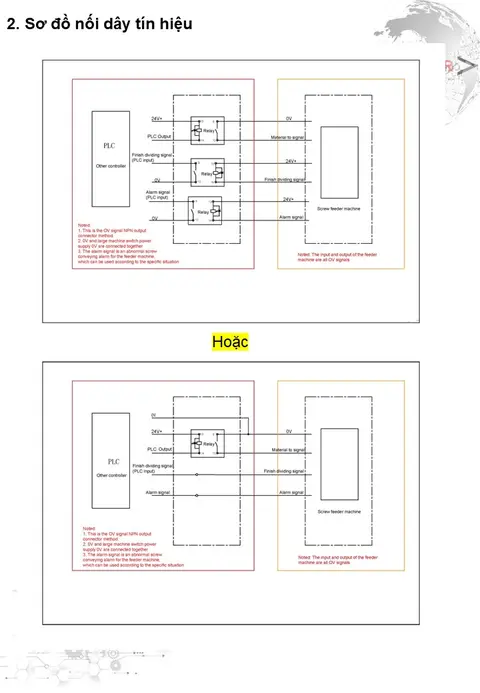

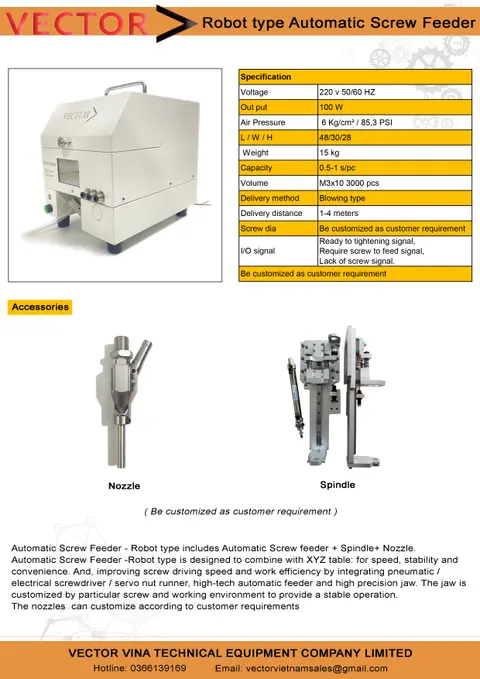

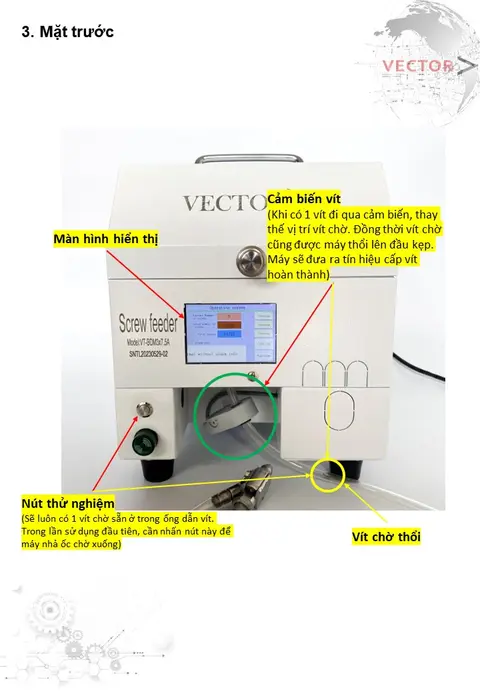

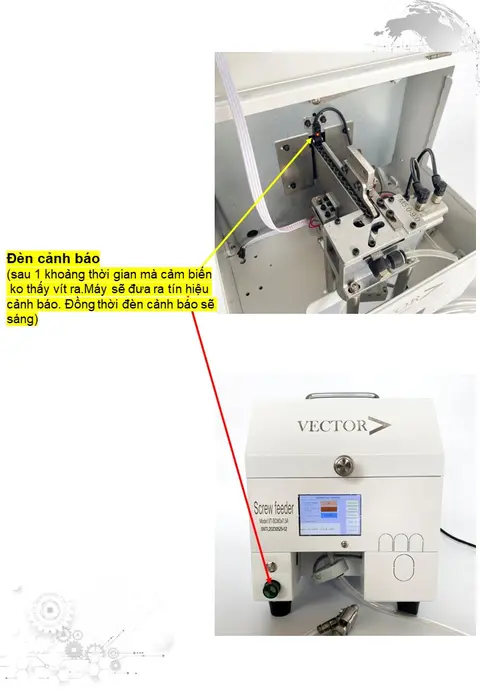

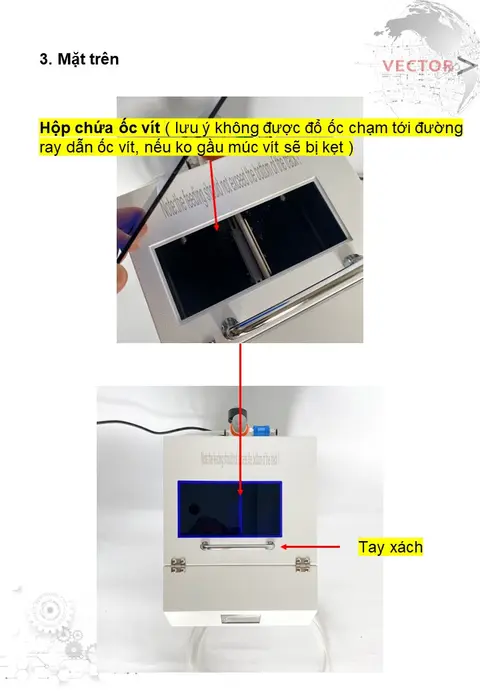

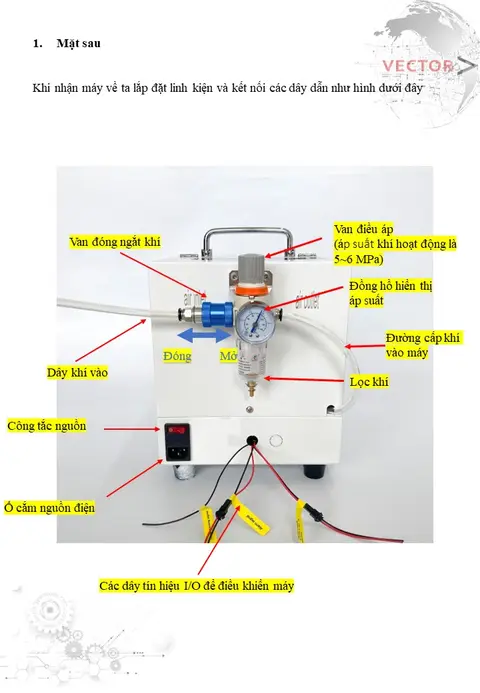

2. Product Information

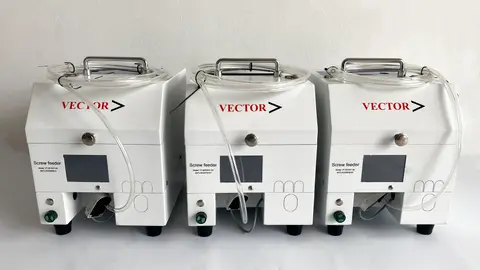

3. Custom Machines Completed by Vector Upon Customer Request
If you wish to purchase a machine, please download, fill out, and send us the survey form below:
Automatic screw feeder survey file
