CEDAR WDISR-IP Series (2.0mN.m – 1500N.m) Torque Tester

Detailed Review of CEDAR WDISR-IP Series Torque Tester

The WDISR-IP Series product line from CEDAR (Japan) is specially designed to manage manual torque tools (manual torque drivers, wrenches). Inheriting the advantages of the previous DIS series, the WDISR-IP Series delivers a superior user experience with higher performance and greater ease of use thanks to its color interface and versatile connectivity.

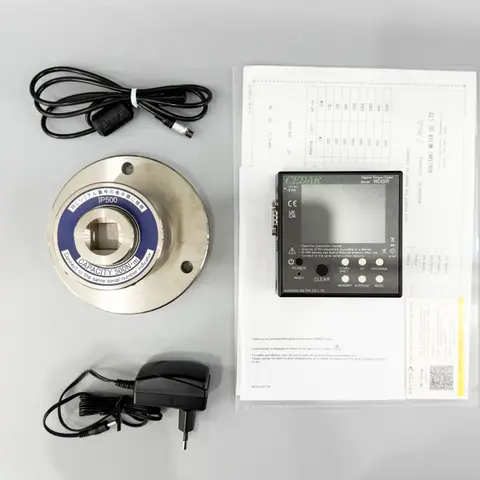

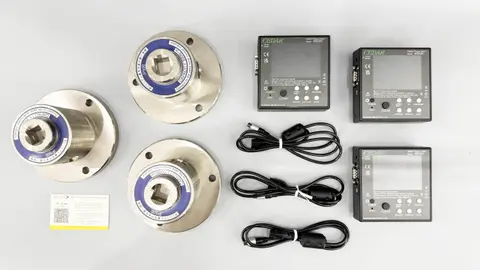

Actual image of the display unit and torque sensors in the CEDAR WDISR-IP series

1. Key Features of the WDISR-IP Series

• Intuitive Pass/Fail Judgment: The color LCD screen clearly displays Pass/Fail conditions using color coding, allowing operators to recognize results immediately without error. The device supports judgment parameter settings across up to 10 different channels.
• Multiple Measurement Modes: The tester supports various measurement modes: Peak hold (PP) for peak torque measurement, Peak down (PD) dedicated to testing torque wrenches (measuring the first peak torque when the wrench clicks), Real time (C) for continuous data output at 180 times/second, and Track (TR) for calibration.
• Strong Compatibility with PC / PLC: Equipped with standard data output via both USB and RS232C ports (Wired ASCII format). Users can control the device via external commands (Clear signal, Mode/Channel switching, Peak hold limit settings, etc.) from a PC or PLC, enabling deeper and more precise torque management.
• Portable with Built-in Rechargeable Battery: The built-in rechargeable battery allows continuous operation for 12 hours (requiring only 3 hours for a full charge), combined with an auto power-off function after 10 minutes of inactivity to maximize energy savings.

2. Model Classification and Torque Measurement Range

3. General Specifications & Accessories

4. Ordering Configuration Guide

When ordering the WDISR-IP Series, you can customize the following configurations to best suit your operating conditions (Ordering number format):

• Detector cable length: Standard options of 1 meter (L1), 2 meters (L2), or 4 meters (L4).
• Packing: Cardboard box (Cardboard – C) or Dedicated plastic case (Plastic case – A). Note: The plastic case is not applicable to large-size detectors IP200, IP500, IP1500.
• Plug: Supports various international standard plug types (A plug, C plug, F plug…).
