SVA-325P (3~25kgf.cm ; 1800 r.p.m ) shut-off pneumatic screwdriver

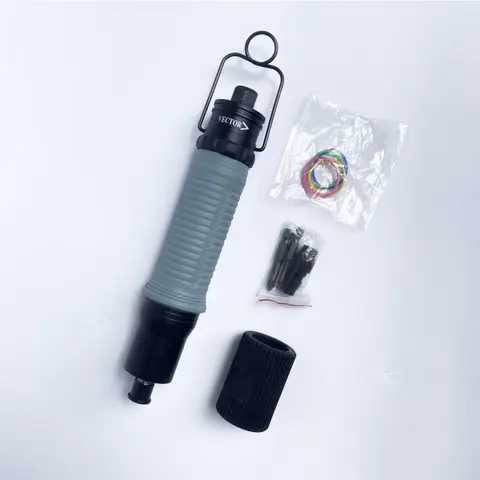

Fully Automatic Pneumatic Screwdriver VECTOR SVA-325P (Shut-off)

Introducing the VECTOR SVA-325P, a fully automatic pneumatic screwdriver (air screwdriver) series exclusively designed and developed by VECTOR VINA. This is the ideal tool for assembly lines requiring high accuracy and torque, ensuring stable performance and consistent product quality.

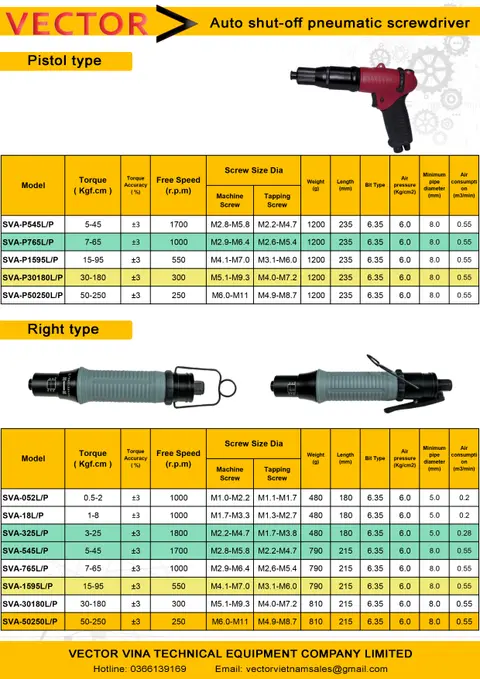

Detailed Technical Specifications:

• Torque: 3 ~ 25 Kgf.cm.
• No-load speed: 1800 r.p.m.
• Screw size capacity: M1.7 ~ M4.7.
• Start type: Push to Start (Push Start).
• Bit type: 6.35mm Hex.
• Weight / Length: 480g / 180mm.
• Operating air pressure: 6.0 Kg/cm².
• Min. air hose bore: 5.0mm.
• Air consumption: 0.2 m³/min.

Advantages of the Fully Automatic Pneumatic Screwdriver Series:

• 🎯
  High torque accuracy: The automatic shut-off mechanism stops immediately once the preset torque is reached, ideal for products requiring high precision.
• ⚙️
  Durable operating mechanism: High-quality pneumatic motor with fewer wear parts ensures a long service life and stable operation in industrial environments.
• ✋
  Ergonomic design: Compact housing design weighing only 480g helps reduce operator fatigue during extended use.
• 🔇
  Quiet, low-vibration operation: Designed to minimize noise and vibration, creating a more comfortable and safer working environment.
