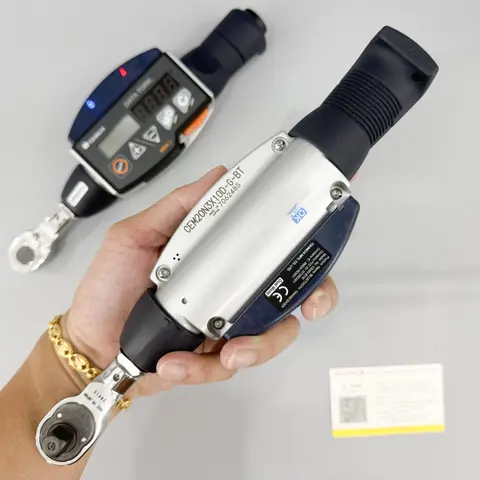

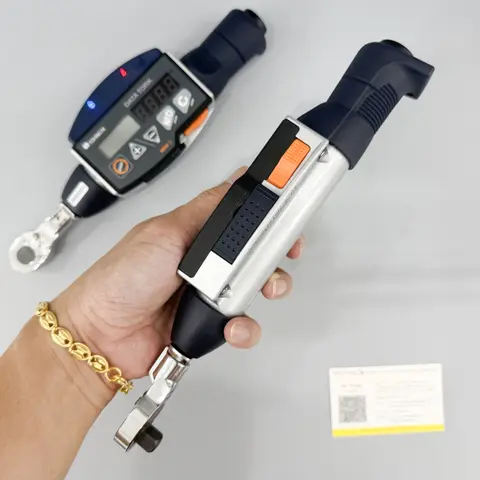

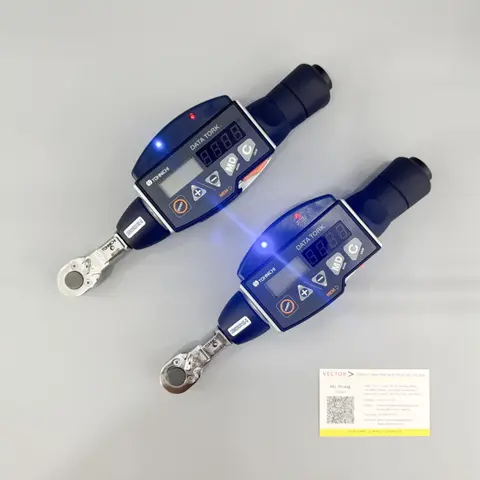

Tohnichi CEM3-G-BT Series Digital Torque Wrench & VT-CEM-MES Software Solution

SKU: CEM3-G-BT

Wide Torque Range: Covers 2 N.m to 850 N.m (corresponding to models CEM10N3 through CEM850N3).
Versatile Interchangeable Heads: Supports standard shank sizes 8D, 10D, 12D, 15D, 19D, 22D, and 32D.
Bi-Directional Bluetooth Connectivity: Simultaneously transmits real-time Torque & Angle data and receives parameter settings from a PC.
100% Quality Control: Automatic OK/NG judgment with ultra-fine resolution, eliminating human error.
Factory System Synchronization: Seamlessly integrates with VT-CEM-MES software for automatic workpiece ID logging and full traceability.

Sales Leader: 0366 139 169 Sales Exec: 087 86 000 86

Overview of Tohnichi CEM3-G-BT Series Digital Torque Wrench & VT-CEM-MES Software

Upgrade your assembly line to smart factory standards with the seamless combination of high-precision measuring equipment and professional software solutions. The Tohnichi CEM3-G-BT Series Digital Torque Wrench system paired with VT-CEM-MES management software provides an optimal torque data digitization solution, meeting stringent standards in automotive, motorcycle, and electronic component manufacturing.

Watch the Live System Demo Video:

Real-time torque data synchronization workflow from Tohnichi Wrench to VT-CEM-MES software

1. Technical Specifications of Tohnichi CEM3-G-BT Series Models

The CEM3-G-BT series is designed with a wide variety of torque ranges, meeting all stringent requirements at workstations. Below are the detailed specifications for each product model:

Model	Torque Range (N.m)	Resolution (N.m)	Head Size (mm)
CEM10N3x8D-G-BT	2 – 10	0.01	8D
CEM20N3x10D-G-BT	4 – 20	0.02	10D
CEM50N3x12D-G-BT	10 – 50	0.05	12D
CEM100N3x15D-G-BT	20 – 100	0.1	15D
CEM200N3x19D-G-BT	40 – 200	0.2	19D
CEM360N3x22D-G-BT	72 – 360	0.4	22D
CEM500N3x22D-G-BT	100 – 500	0.5	22D
CEM850N3x32D-G-BT	170 – 850	1.0	32D

Interchangeable Head: Fully compatible with Tohnichi's diverse head ecosystem, allowing flexible switching for various fastener standards.
Precise Measurement: Simultaneous control of both Torque and Angle ensures fastened joints meet absolute safety standards.
Wireless Connectivity: The integrated Bluetooth module enables high-speed data transmission, eliminating tangled cables in confined factory spaces.

2. Synchronization Power from VT-CEM-MES Software

The VT-CEM-MES software solution transforms a standalone torque wrench into a standardized management system (Factory-level management):

Universal Connectivity: The software supports and manages all torque wrench models listed in the specification table within a single display interface.
Job Recall via QR/Barcode: Technicians simply scan the product barcode, and the software automatically pushes commands (target torque, screw count, etc.) directly to the wrench.
Two-Way Communication (Duplex Mode): The wrench receives commands for execution and sends completion results back to the computer. If parameters deviate, the system triggers an NG alarm immediately.
Digitization & Traceability: All data such as CGC number, operation time, actual torque value, and alarm status are stored locally and synchronized to the factory server/SQL, ready for quality audits (Audit).

3. Practical Applications

This solution is the standard choice for critical stations such as:

Engine and chassis assembly lines for automobiles and motorcycles.
Fastening electronic components, AI circuit boards, and liquid-cooling quick-disconnect assembly stations.
Any process requiring data digitization and 100% elimination of human missing-screw errors.
