SV-IO320 ( 3-20 Kgf.cm ) automation-integrated electric screwdriver
Contact
Medium Torque, Vector Products, Screwdrivers for Industry 4.0, Low-Torque Electric Screwdrivers, VECTOR Electric Screwdrivers, Counter VT Electric Screwdrivers, Vector New Electric Screwdriver Series, High-Torque Electric Screwdrivers
Smart servo-motor electric screwdriver for automation – DigitalTorque & Angle Control SCREW DRIVER
The VECTOR smart electric screwdriver is an all-in-one integrated smart fastening solution for a reliable and efficient process, featuring fastening scheduling and torque accuracy.
The VECTOR smart electric screwdriver thoroughly detects fastening errors for quality-oriented engineers.
The error-proofing system eliminates production risks and detects product defects.
The program is easy to control with fastening workflow sequences and torque tolerances for each fastening position in the work sequence.
The smart fastening system provides the capability to record and store torque and fastening data.
The electric screwdriver system includes free bundled software – no annual license required – saving $2K.
Achieve the best manufacturing process by using this smart electric screwdriver system.

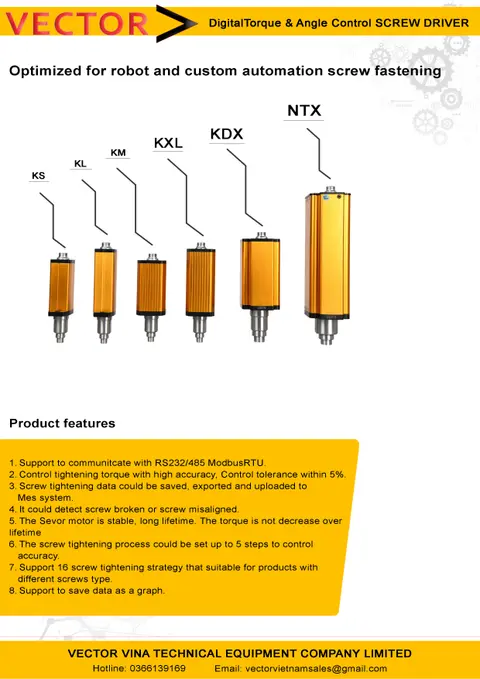

VECTOR Servo Screwdrivers for Automation
High-performance screwdriving solutions specialized for robots, automated machines, and assembly lines, ensuring absolute accuracy and control.
Specialized Servo Screwdriver Lines
Designed for easy integration into robotic arms and automated systems, delivering superior performance and reliability.
Key Features for Automation
High Accuracy (±5%)
The servo motor ensures low torque error, ideal for high-precision applications such as electronics and medical device assembly.
5-Step Fastening Programming
Allows setting up to 5 steps per cycle with customizable speed, rotation angle, and torque to meet complex assembly processes.
MES System Connectivity
All fastening data (torque, angle, OK/NG status) is uploaded directly to the Manufacturing Execution System (MES) for monitoring and traceability.
Modbus Protocol Support
Seamlessly integrates into automation control systems (PLC, HMI) via the standard Modbus protocol.
Fastening Status Monitoring
Monitors and stores data on torque, number of rotations, and product parameters, ensuring 100% quality control.
Robot-Ready Design
Compact profile, lightweight build, and standard mounting points allow easy integration onto robotic arms and automated machine mechanisms.

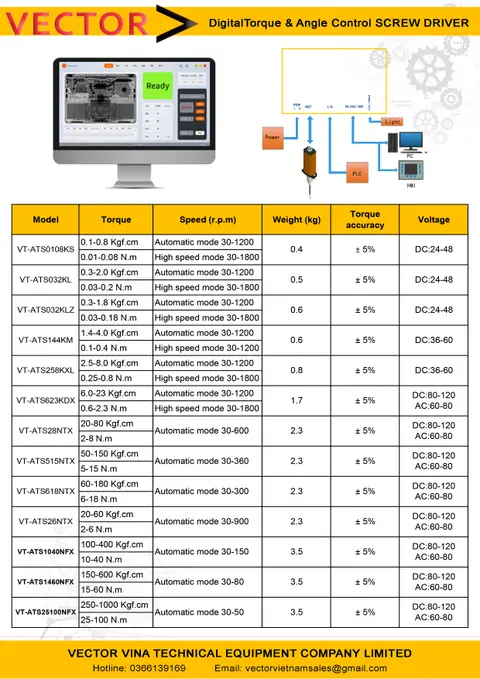

Detailed Technical Specifications
Refer to the complete specification table below to select the most suitable model for your system.
Typical Applications
The VECTOR servo electric screwdriver series is the top choice for industries requiring high precision and automation.
Electronics Assembly
Screw fastening for PCBs, smartphones, tablets, and consumer electronics.
Automotive Industry
Assembling interior component modules, electrical systems, and parts requiring strict torque control.
Medical Devices & Aerospace
Applications demanding high reliability and 100% traceability for every single screw.
Torque Chart & Model List
Refer to the visual chart and complete model list below to select the most suitable product.
Torque Range Chart (N.m)
Light/Medium Series
High Series
Ultra-High Series
0
20
40
60
80
100
20
40
60
80
100
Range
| Model | Torque Range (N.m) | Speed (r.p.m) | Weight (kg) |
|---|---|---|---|
| VT-ATS0108KS | 0.01-0.08 | 30-1800 | 0.4 |
| VT-ATS032KL | 0.03-0.2 | 30-1800 | 0.5 |
| VT-ATS032KLZ | 0.03-0.18 | 30-1800 | 0.6 |
| VT-ATS144KM | 0.1-0.4 | 30-1200 | 0.6 |
| VT-ATS258KXL | 0.25-0.8 | 30-1800 | 0.8 |
| VT-ATS623KDX | 0.6-2.3 | 30-1800 | 1.7 |
| VT-ATS28NTX | 2-8 | 30-600 | 2.3 |
| VT-ATS515NTX | 5-15 | 30-360 | 2.3 |
| VT-ATS618NTX | 6-18 | 30-300 | 2.3 |
| VT-ATS26NTX | 2-6 | 30-900 | 2.3 |
| VT-ATS1040NFX | 10-40 | 30-150 | 3.5 |
| VT-ATS1460NFX | 15-60 | 30-80 | 3.5 |
| VT-ATS25100NFX | 25-100 | 30-50 | 3.5 |
