P1L-BSD-6600L (3-16kgf.cm ) Kilews Brushed DC Electric Screwdriver

SKU: BSD-6600L

Product Name : P1L-BSD-6600L ( SKD-5300L )

Manufacturer : Kilews , 寄力速 , BSD , 比速迪, seyoung, Hifit ( affiliated brands under the same group )

Screwdriver Type : Fully automatic; external replaceable carbon brush; uses DC power.

Torque : 3-16 kgf.cm (0.29-1.57 N.m )

Speed : 1000 r.p.m

Start Switch Type : Trigger Start ( Trigger Start )

Input Voltage : 220V

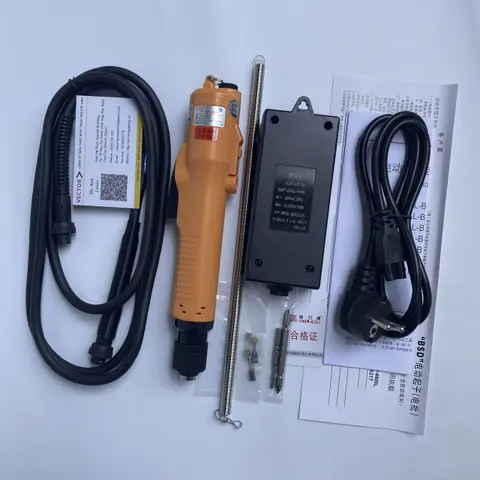

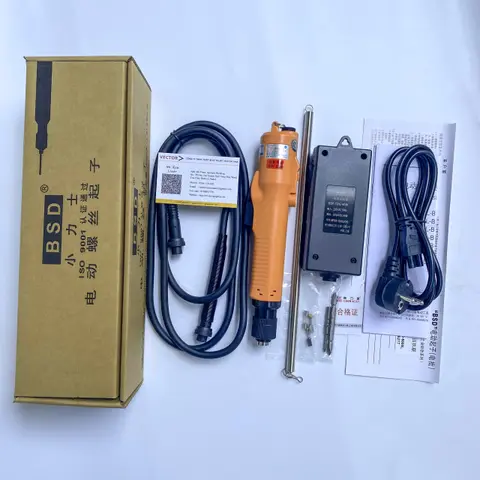

Operating Voltage : DC 24V-32V ( BSP-32HL-60W power controller included )

Applicable Screw Size : M2.3-M3.5

Weight : 480g

Contact us for the best price
Contact Us for a Quote

Sales Leader: 0366 139 169   Sales Exec: 087 86 000 86

●Designed for high-temperature resistance, anti-vibration, non-slip, compact, and easy to grip. Allows long hours of electric screwdriver operation without fatigue.
●The power supply uses low-voltage DC power; the electric screwdriver features a fully automatic clutch with high stability, unaffected by voltage fluctuations, capable of continuous operation over long periods with low temperature rise and high working efficiency.
●DC motor materials made with Japanese technology provide fast startup, low current draw, and stable speed. High torque stability with an accuracy within ±3%.
●Stepless torque adjustment from 0~8, with selectable Hi or Low speed settings.
●Suitable for assembling desktop computers, laptops, game consoles, etc., and other high-tech electronic products; can be fitted with a KC-6C torque fixing ring to lock the torque setting.
●4 bit holder types (A, B, C, D) available for selection. Compatible with most types of screws and bolts.
●UL and CE certified. All models in this series are available with an optional ESD-safe housing.

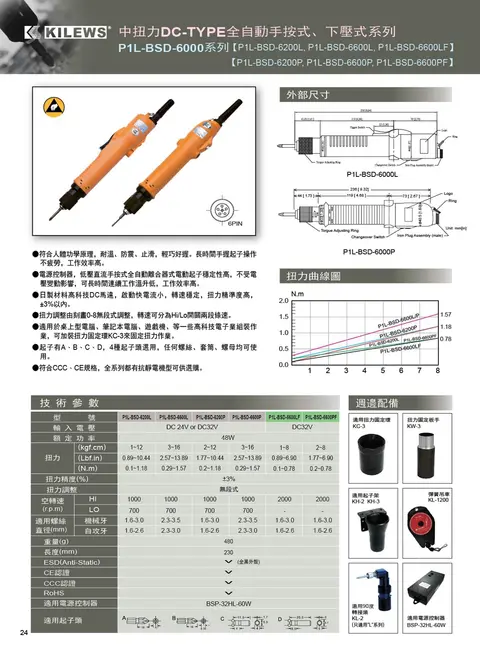

BSD-6600L Specifications
