VECTOR VSF-0850 Automatic Screw Feeder (Brushless Motor, Supports M0.8 – M5.0 Screws)

SKU: VSF-0850

VECTOR VSF-0850 automatic screw feeder is an optimal solution for professional assembly lines. The product thoroughly eliminates screw jamming, enhancing productivity and service life thanks to premium components.

Durable motor: Uses a Japanese-imported brushless motor (Brushless motor).
High flexibility: Precision wire-cut guide rail, easily adjustable for screw sizes from M0.8 to M5.0.
Stable feeding: Horizontal linear feeding mechanism across an extruded aluminum bar, with a speed of 42 – 90 screws/min.
Smart circuit board: Integrated digital display, screw counter, material shortage alarm, and overload protection.

Sales Leader: 0366 139 169 Sales Exec: 087 86 000 86

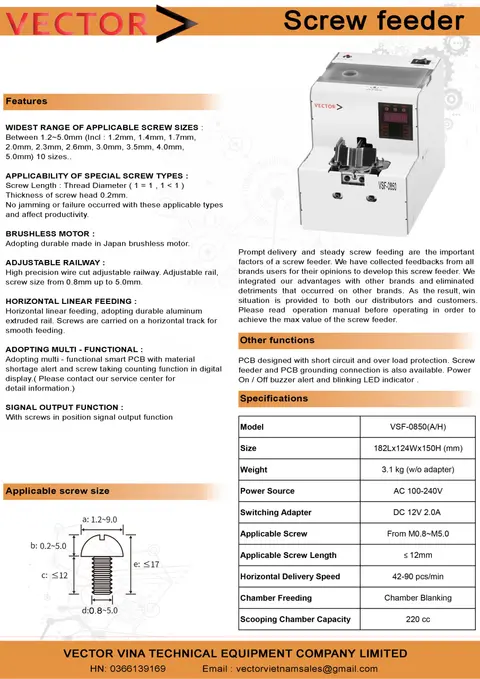

Detailed Review of VECTOR VSF-0850 Automatic Screw Feeder

Fast delivery and stable screw feeding are vital factors for an automatic screw feeding system. Developed based on practical user feedback, the VECTOR VSF-0850 integrates outstanding advantages and completely eliminates common drawbacks found in other models, delivering maximum efficiency for production lines.

1. Key Features

Widest screw size range: Applicable to 10 different screw sizes from 1.2mm to 5.0mm (Including: 1.2, 1.4, 1.7, 2.0, 2.3, 2.6, 3.0, 3.5, 4.0, 5.0mm).
Compatible with special screws: Effectively handles Screw Length : Thread Diameter ratios (1 = 1 or 1 < 1), and screw head thickness of 0.2mm. Ensures no jamming or errors that affect productivity.
Brushless Motor: Equipped with a Japanese-made brushless motor, increasing service life and reliability during continuous operation.
Adjustable guide rail: High-precision wire-cut guide slot, allowing easy rail width adjustment from 0.8mm up to 5.0mm.
Horizontal linear feeding: Screws move horizontally along an extruded aluminum rail, ensuring an extremely smooth screw feeding process.
Smart multi-function: Intelligent PCB with material shortage alarm, digital display screw counting function, and signal output when the screw is in position.

2. Safety Protection Functions

The PCB system is designed with integrated short-circuit and overload protection. Supports grounding connection between the machine and the PCB. Equipped with a Power On/Off buzzer alert and a flashing LED status indicator.

3. Specifications

Model	VSF-0850(A/H)
Size	182(L) x 124(W) x 150(H) mm
Weight	3.1 kg (excluding adapter)
Power Source	AC 100 – 240V
Power Adapter	DC 12V 2.0A
Applicable Screw Size	M0.8 ~ M5.0
Max Screw Length	≤ 12mm
Feeding Speed (Horizontal)	42 – 90 pcs/min
Hopper Capacity	220 cc
