All Electric Screwdrivers, VECTOR Electric Screwdrivers

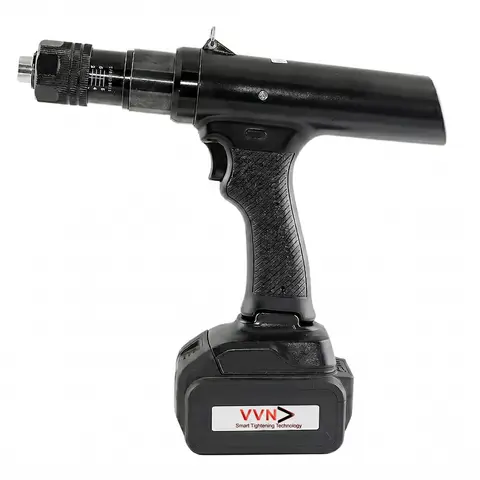

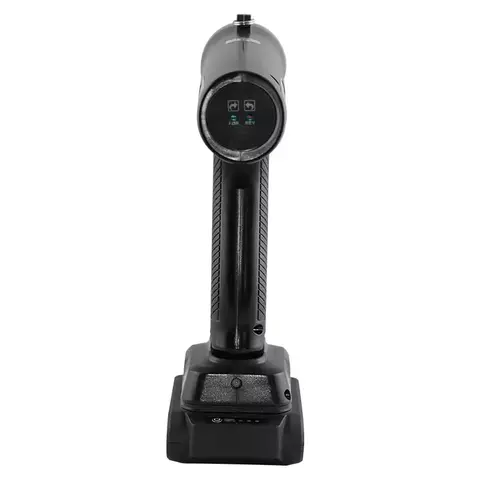

SV-PTA Series – VVN SV-PTA Series Industrial Fully Automatic Brushless Cordless Screwdriver

SKU: SV-PTA

- Brand: VVN
- Product Series: SV-PTA Series (Includes models from SV-PTA25LI to SV-PTA350LI)
- Motor Type: Industrial-grade Brushless Motor, offering powerful output, durable operation, and spark-free performance.
- Operating Mechanism: Fully Automatic – Automatically shuts off or reverses accurately as soon as the preset torque is reached.
- Key Features: Soft start & stop to prevent workpiece scratching; Ergonomic design reduces torque reaction to protect the operator's wrist.
- Power Supply: High-capacity 20V Lithium-ion battery.
- Application: Specialized for electronics, automotive, motorcycle, and industrial equipment assembly lines requiring high frequency and absolute torque accuracy.

Sales Leader: 0366 139 169 Sales Exec: 087 86 000 86

Introduction to VVN SV-PTA Series Industrial Brushless Full-Auto Cordless Screwdriver

The VVN SV-PTA Series Industrial Brushless Full-Auto Cordless Screwdriver line is a premier professional cordless fastening solution for modern industrial production and assembly lines. The tool completely eliminates workspace restrictions thanks to its flexible battery-powered design, while delivering superior performance, precise torque control, and exceptional durability in continuous operation environments.

Key Features of the VVN SV-PTA Series

Industrial-Grade Brushless Motor: Delivers constant torque and ultra-stable output. Motor lifespan is significantly longer than traditional brushed motors, producing no electrical sparks and requiring no periodic maintenance.
Smart Full-Automatic Operation: When the screw reaches the preset torque, the tool automatically activates the shut-off or auto-reverse mechanism (for specialized models), completely preventing over-tightening that strips threads or breaks screws.
Soft Start and Stop Mode: The soft start feature guides the screw into the thread accurately and gently before accelerating, completely eliminating screw head stripping or damage to the workpiece surface.
Ergonomic & Low-Reaction Design: The optimized handle design effectively absorbs reaction force upon completing the fastening cycle, minimizing fatigue and protecting the operator's wrist. The tool comes with a built-in suspension ring convenient for spring balancer assembly lines.
Optimal Extended Utilities: Integrated LED work light (Flashlight) that automatically turns off when the trigger is released, intuitive battery status indicator (Green/Red), and an automatic sleep mode after 1 minute of inactivity to save energy.

Detailed Technical Specifications for VVN SV-PTA Models

Model	Torque Range	No-load Speed	Input Voltage	Weight	Standard Bits
SV-PTA25LI	5 – 25 kgf.cm (0.5 – 2.45 N.m)	1000 r.p.m	20V	750 g	1/4 hex
SV-PTA25FLI	5 – 23 kgf.cm (0.5 – 2.25 N.m)	2000 r.p.m
SV-PTA30LI	10 – 30 kgf.cm (0.98 – 2.94 N.m)	1000 r.p.m
SV-PTA30FLI	10 – 30 kgf.cm (0.98 – 2.94 N.m)	2000 r.p.m
SV-PTA35LI	10 – 35 kgf.cm (0.98 – 3.43 N.m)	650 r.p.m
SV-PTA45LI	15 – 45 kgf.cm (1.47 – 4.41 N.m)	650 r.p.m
SV-PTA50LI	20 – 50 kgf.cm (1.96 – 4.9 N.m)	1000 r.p.m		1300 g
SV-PTA70LI	30 – 70 kgf.cm (2.94 – 6.86 N.m)	800 r.p.m
SV-PTA100LI	40 – 100 kgf.cm (3.92 – 9.8 N.m)	500 r.p.m
SV-PTA150LI	60 – 170 kgf.cm (5.88 – 16.7 N.m)	350 r.p.m
SV-PTA250LI	80 – 250 kgf.cm (7.84 – 24.5 N.m)	215 r.p.m
SV-PTA350LI	120 – 350 kgf.cm (11.8 – 34.3 N.m)	155 r.p.m

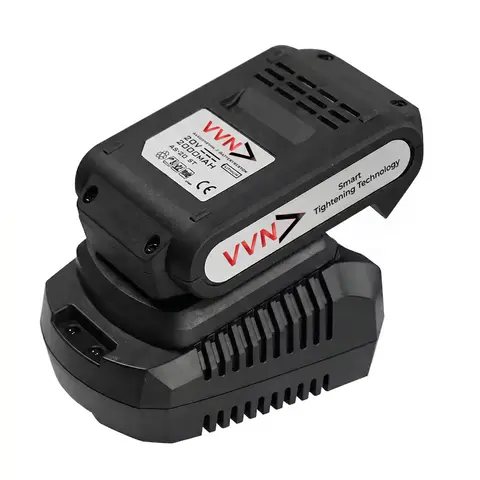

VVN Synchronized Battery & Charging Station Ecosystem

To ensure continuous operating performance on the factory floor, the series pairs seamlessly with a quick-release power ecosystem:

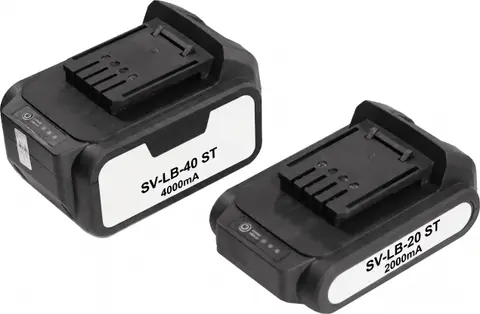

VVN SV-LB-20 ST Lithium Battery (2000mA): Ultra-lightweight, optimizing flexibility and reducing hand fatigue for operators during continuous shifts.
VVN SV-LB-40 ST Lithium Battery (4000mA): Double capacity, ideal for heavy-duty fastening applications or extended runtime requirements.

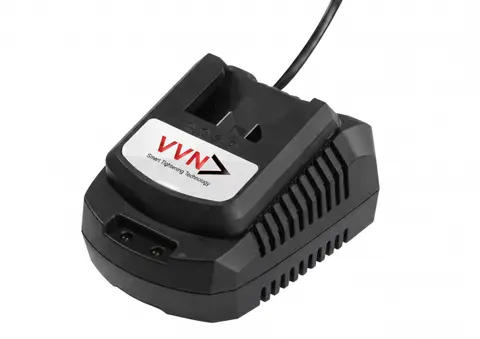

VVN SV-P-80 ST Fast Charger: Easy-to-use slide-in mount design, fast charging, and clear status indication via LED indicators (Red: Charging / Green: Fully charged).

SKU: SV-PTA Categories: All Electric Screwdrivers, VECTOR Electric Screwdrivers
