Electric screwdriver Torx bit 801/4C, round shank diameter 5mm, VECTOR VINA, T20 T15

Industrial Screwdriver Bits, 5mm Hex Shank Screwdriver Bits, 5mm Hex Shank Torx Screwdriver Bit - T-Torx Bit

Electric screwdriver Torx bit with round shank 5mm, S2 steel, strongly magnetic, VECTOR VINA

Name: Electric screwdriver Torx bit with round shank 5mm, S2 steel, strongly magnetic, VECTOR VINA
Brand: VECTOR VINA
SKU: Đầu tròn 5mm, Mũi hoa thị
Price: 1 VND
Availability: InStock

SKU: Round head 5mm, Torx bit Brand: VECTOR VINA

Classification (34) — click on the box to view image

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*60*D2*25*T3 — **D5*60*D2*25*T3**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*60*D2*25*T4 — **D5*60*D2*25*T4**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*60*D2.5*25*T5 — **D5*60*D2.5*25*T5**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*60*D2*25*T6 — **D5*60*D2*25*T6**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*60*D2.5*25*T7 — **D5*60*D2.5*25*T7**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*60*D3*25*T8 — **D5*60*D3*25*T8**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*60*D3*25*T10 — **D5*60*D3*25*T10**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*60*D3.5*25*T15 — **D5*60*D3.5*25*T15**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*60*D4*25*T20 — **D5*60*D4*25*T20**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*80*D2*25*T5 — **D5*80*D2*25*T5**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*80*D3*25*T8 — **D5*80*D3*25*T8**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*80*D3*25*T9 — **D5*80*D3*25*T9**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*80*D3*25*T10 — **D5*80*D3*25*T10**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*80*D3.5*25*T15 — **D5*80*D3.5*25*T15**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*100*T6 — **D5*100*T6**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*100*T10 — **D5*100*T10**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*100*T15 — **D5*100*T15**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*100*T20 — **D5*100*T20**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*150*T8 — **D5*150*T8**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*150*T10 — **D5*150*T10**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*150*T15 — **D5*150*T15**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*150*T20 — **D5*150*T20**

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*60*D3*25*T9 — **D5*60*D3*25*T9**

D5*60*T15

Mũi vít điện hoa thị 801/4C chuôi tròn 5mm thép S2 từ tính mạnh VECTOR VINA – D5*100*T8 — **D5*100*T8**

D5*100*T8

Custom order non-standard (contact customer service)

D5*60*D3*25*T9

Chat Zalo 0969 56 56 80

Sales Leader: 0366 139 169 Sales Exec: 087 86 000 86

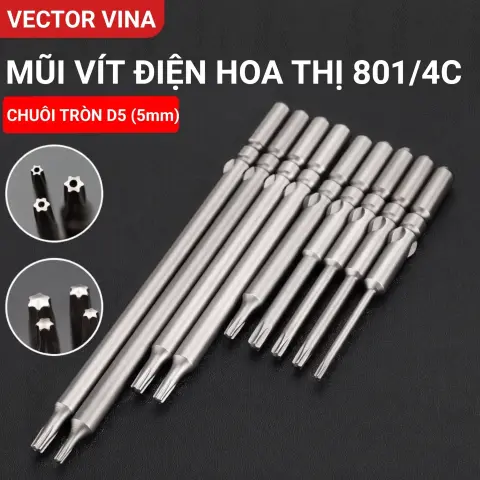

Electric Torx screwdriver bit 801/4C round shank 5mm S2 steel strong magnetic VECTOR VINA

VECTOR VINA electric Torx screwdriver bit 801/4C (also known as 6-lobe star screwdriver bit, flower-shaped bit or Torx bit) is a specialized accessory for electric screwdrivers with a 5mm round shank socket (801-type electric screwdriver).

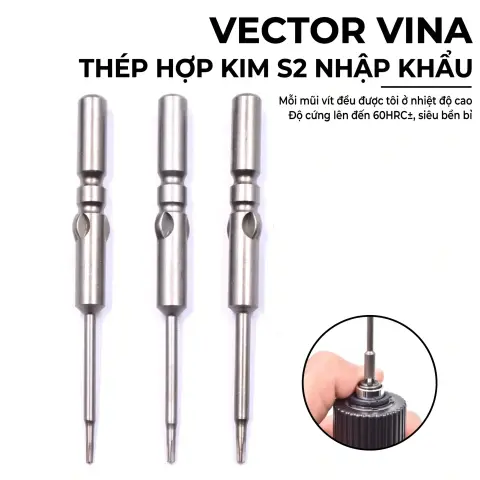

The product is manufactured from imported Taiwanese S2 alloy steel, each bit undergoes high-temperature quenching to achieve a hardness of 60±2 HRC for durability. The bit tip is machined with high-precision lathes and milling machines, ensuring a tight fit with screws and preventing thread stripping. Additionally, the bit is treated with strong magnetism to securely hold screws, improving work efficiency and reducing wear.

The 801/4C Torx screwdriver bit series offers various specifications to choose from according to work requirements. Overall lengths include 60mm, 80mm, 100mm and 150mm, with bit tip sizes from T3, T4, T5, T6, T7, T8, T9, T10 to T15, T20. The product is available in solid tip (without hole) and tip with center hole types, packaged in boxes of 10 pieces.

Key specifications

Brand: VECTOR VINA or other brands depending on stock availability
Product type: Electric Torx screwdriver bit (6-lobe star, flower-shaped, Torx) 801/4C
Material: Imported S2 alloy steel, high-temperature quenched
Shank size: 5mm round shank (D5), for 801-type electric screwdriver
Bit tip size: T3, T4, T5, T6, T7, T8, T9, T10, T15, T20 (solid without hole and with hole types)
Overall length: 60mm, 80mm, 100mm, 150mm
Features: Strong magnetism, packaged in boxes of 10 pieces

Outstanding features

Made from imported Taiwanese S2 alloy steel, each bit is quenched at high temperature.
Hardness reaches 60±2 HRC, good load capacity and durability.

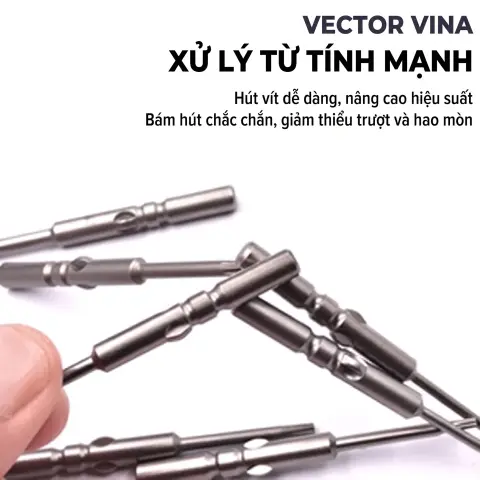

The bit is treated with strong magnetism, easily attracts screws to improve work efficiency.

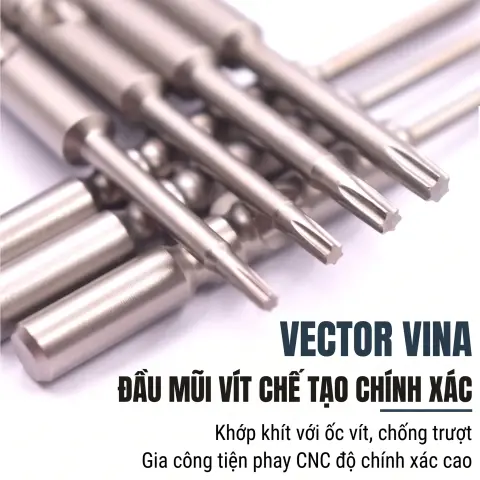

High-precision lathes and milling machines machine the bit tip for tight screw fit, no thread stripping.
Round shank diameter 5mm (801/4C) compatible with 801-type electric screwdrivers.
Complete options of solid (without hole) and with hole Torx tips from T3 to T20.

Summary technical specifications table

Product code	Shank size (mm)	Total length (mm)	Reduced section diameter (mm)	Reduced section length (mm)	Torx bit tip size	Bit tip type	Packaging specification
D560D225T3	5	60	2	25	T3	Solid (without hole)	10 pieces
D560D225T4	5	60	2	25	T4	Solid (without hole)	10 pieces
D560D2.525T5	5	60	2.5	25	T5	Solid (without hole)	10 pieces
D560D225T6	5	60	2	25	T6	Solid (without hole)	10 pieces
D560D2.525T7	5	60	2.5	25	T7	Solid (without hole)	10 pieces
D560D325T8	5	60	3	25	T8	Solid	10 pcs
D560D325T10	5	60	3	25	T10	Solid	10 pcs
D560D3.525T15	5	60	3.5	25	T15	Solid	10 pcs
D560D425T20	5	60	4	25	T20	Solid	10 pcs
D580D225T5	5	80	2	25	T5	Solid	10 pcs
D580D325T8	5	80	3	25	T8	Solid	10 pcs
D580D325T9	5	80	3	25	T9	Solid	10 pcs
D580D325T10	5	80	3	25	T10	Solid	10 pcs
D580D3.525T15	5	80	3.5	25	T15	Solid	10 pcs
D5100T6	5	100			T6	Solid	10 pcs
D5100T10	5	100			T10	Solid	10 pcs
D5100T15	5	100			T15	Solid	10 pcs
D5100T20	5	100			T20	Solid	10 pcs
D5150T8	5	150			T8	Solid	10 pcs
D5150T10	5	150			T10	Solid (no hole)	10 pieces
D5150T15	5	150			T15	Solid (no hole)	10 pieces
D5150T20	5	150			T20	Solid (no hole)	10 pieces
D560D225T6	5	60	2	25	T6	With hole	10 pieces
D560D325T8	5	60	3	25	T8	With hole	10 pieces
D560D325T9	5	60	3	25	T9	With hole	10 pieces
D560D325T10	5	60	3	25	T10	With hole	10 pieces
D560T15	5	60			T15	With hole	10 pieces
D5100T8	5	100			T8	With hole	10 pieces
D5100T10	5	100			T10	With hole	10 pieces
D5100T15	5	100			T15	With hole	10 pieces
D5100T20	5	100			T20	With hole	10 pieces
D5100T8	5	100			T8	Solid (no hole)	10 pieces
Custom order non-standard (contact customer service)
D560D325T9	5	60	3	25	T9	Solid (no hole)	10 pieces

General specifications

Specification	Value
Brand	VECTOR VINA or other brand depending on stock at the time
Material	Taiwan S2 alloy steel
Shank diameter	5mm (D5)
Characteristics	Strongly magnetic
Origin	Mainland China

Detailed images

Hướng dẫn chọn loại mũi vít điện và kích thước chuôi 5mm cho máy vít 801

Bảng quy cách kích thước mũi vít hoa thị VECTOR VINA tương ứng với model vít
